Vehicle Display Lifts
A Defining Feature for Modern Dealerships
Atlantic Lifts’ Vehicle Display Lifts are purpose-built systems designed exclusively for automotive dealerships that want to stand apart. These lifts are not about transportation. They are about presence.
Designed and manufactured in Canada, our vehicle display lifts create a bold, vertical presentation that immediately elevates the look and feel of a showroom. Vehicles become focal points. The dealership becomes memorable.
They are dedicated display systems, engineered specifically to present vehicles with confidence and control in high-visibility dealership environments.
Designed for Visual Impact

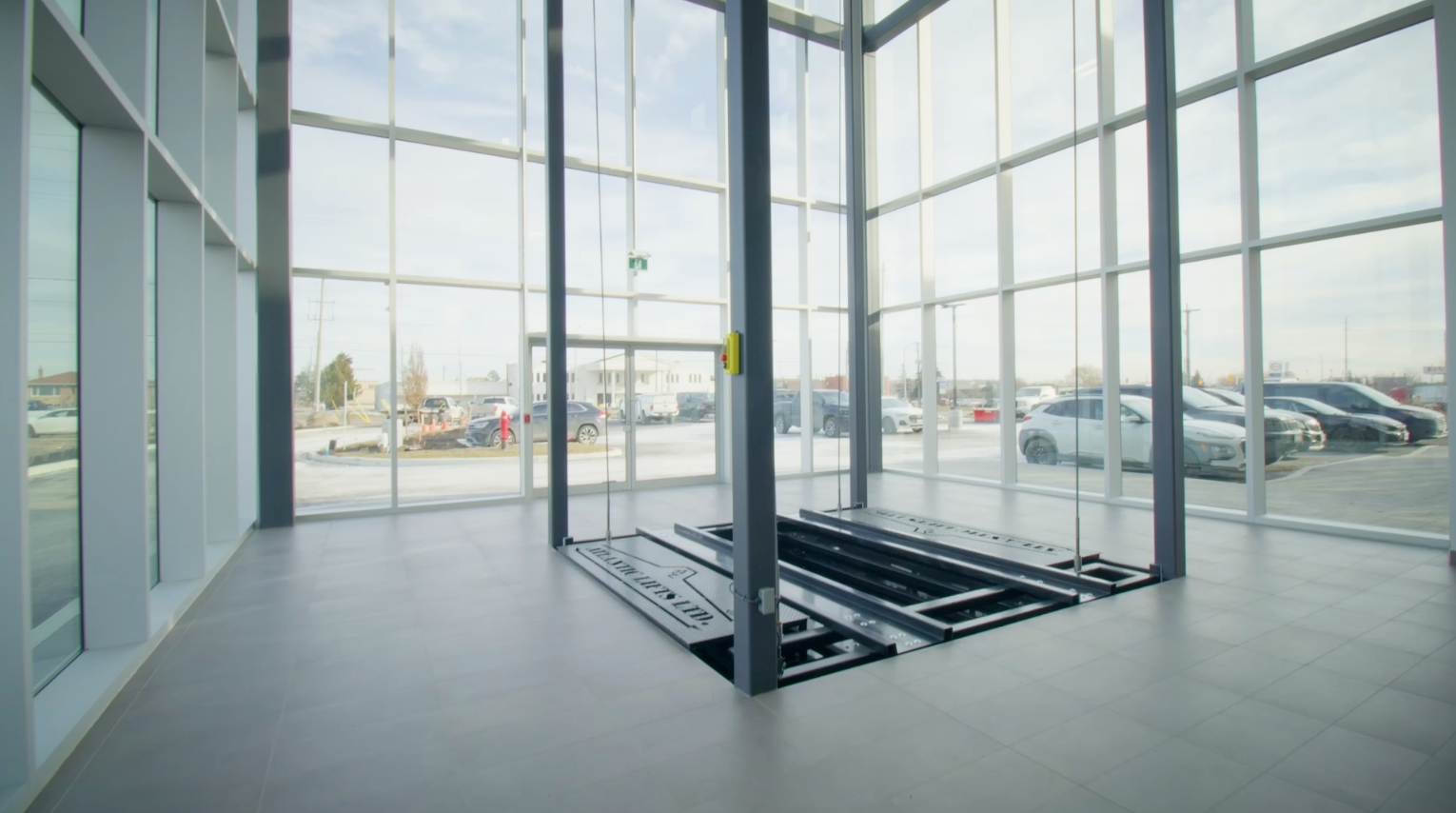

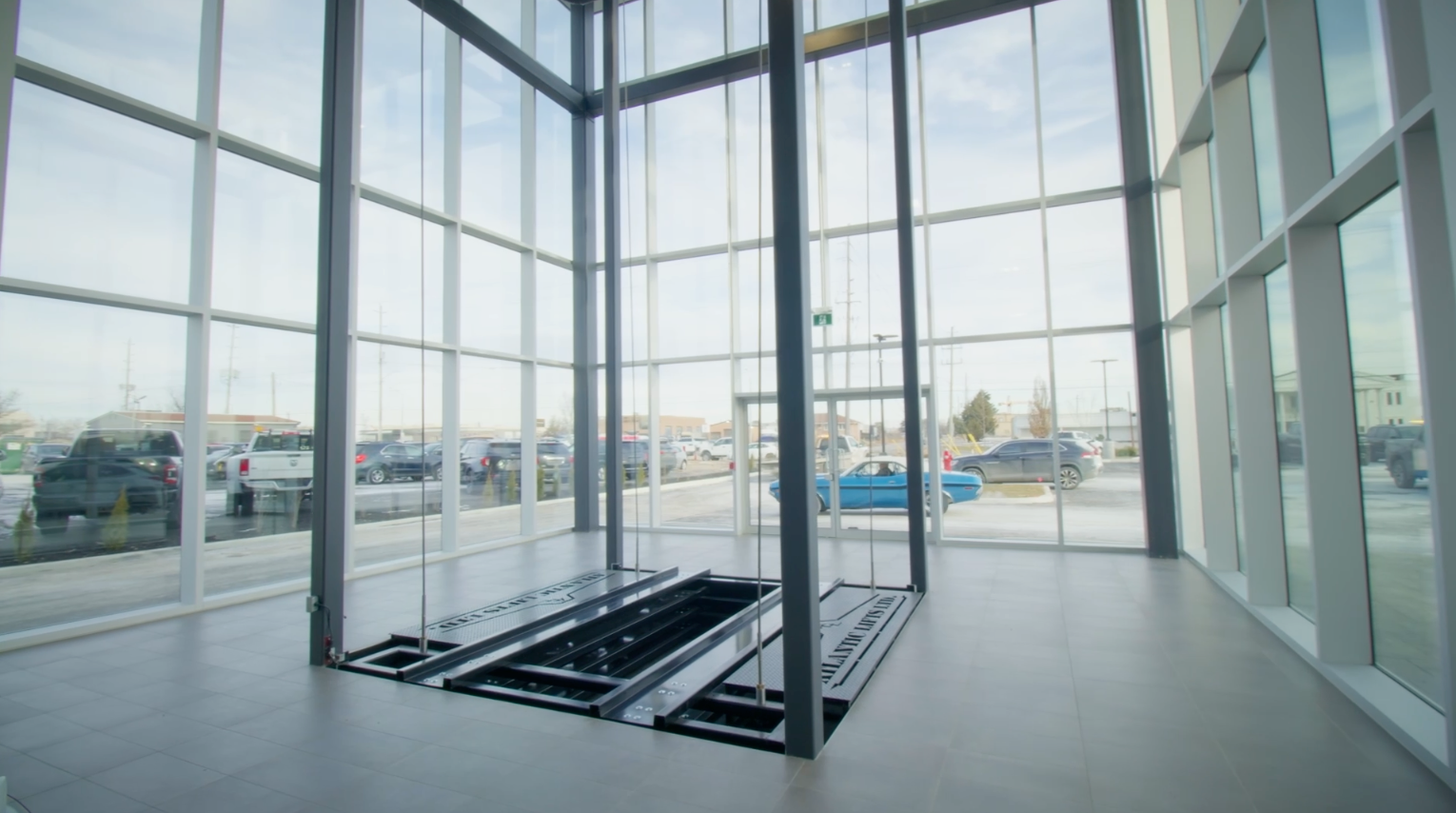

Vehicle display lifts are intended to be seen, not noticed quietly in the background. Whether viewed from inside the showroom or through the front glazing, the vertical presentation creates scale, symmetry, and visual interest that static floor displays simply cannot match.
Once positioned, the lift remains stationary, presenting vehicles cleanly and securely as part of the dealership’s permanent visual layout. The result is a showroom feature that feels intentional, premium, and considered.
Purpose-Built System Design

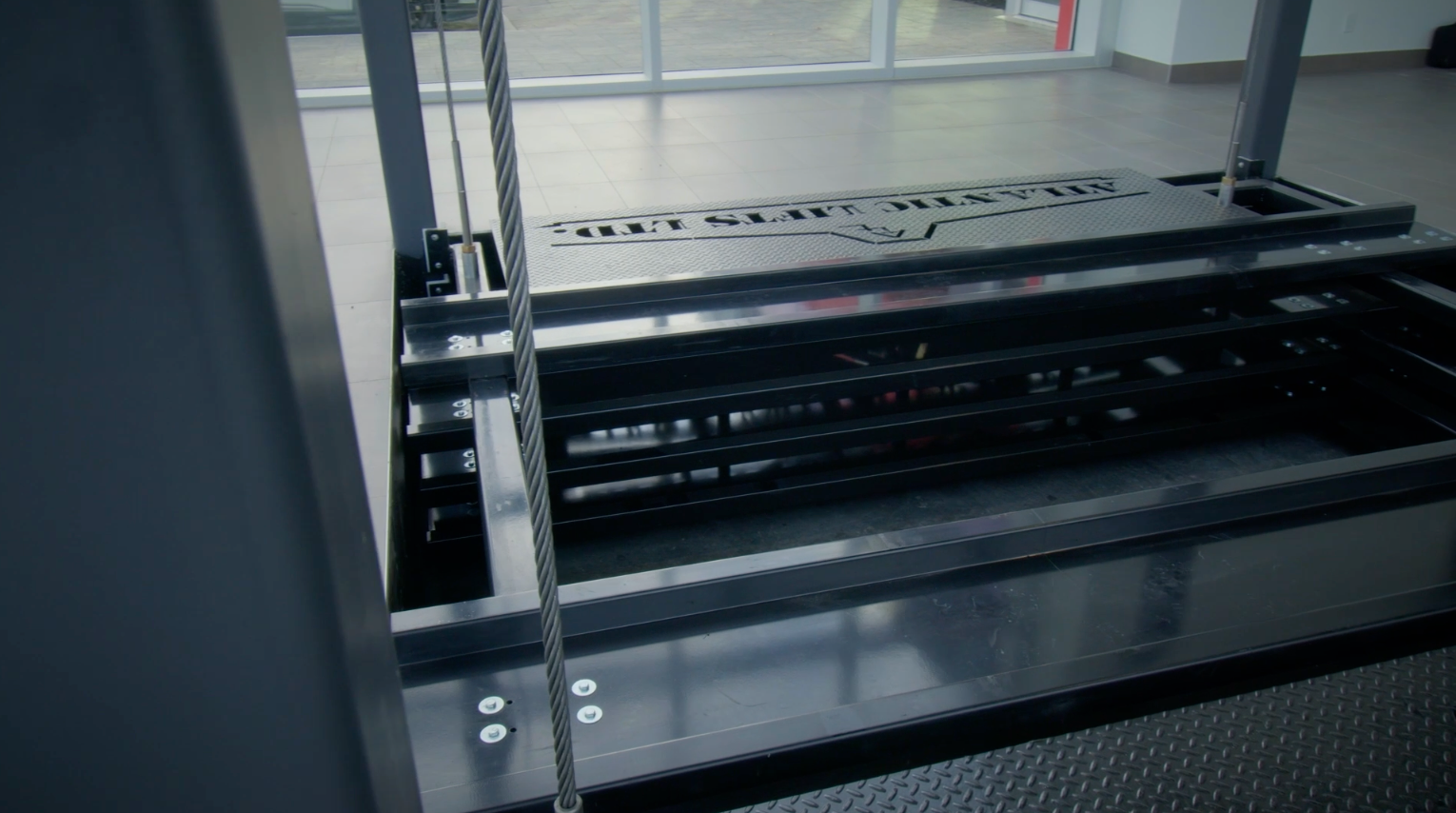

Atlantic Lifts’ vehicle display systems use a multi-drum, wire rope-driven lifting arrangement engineered specifically for stacked vehicle presentation.
The system operates using:
Four winding drums
Pinned high yield chain cut to a pre-determined length
Fixed display intervals based on the desired vertical spacing

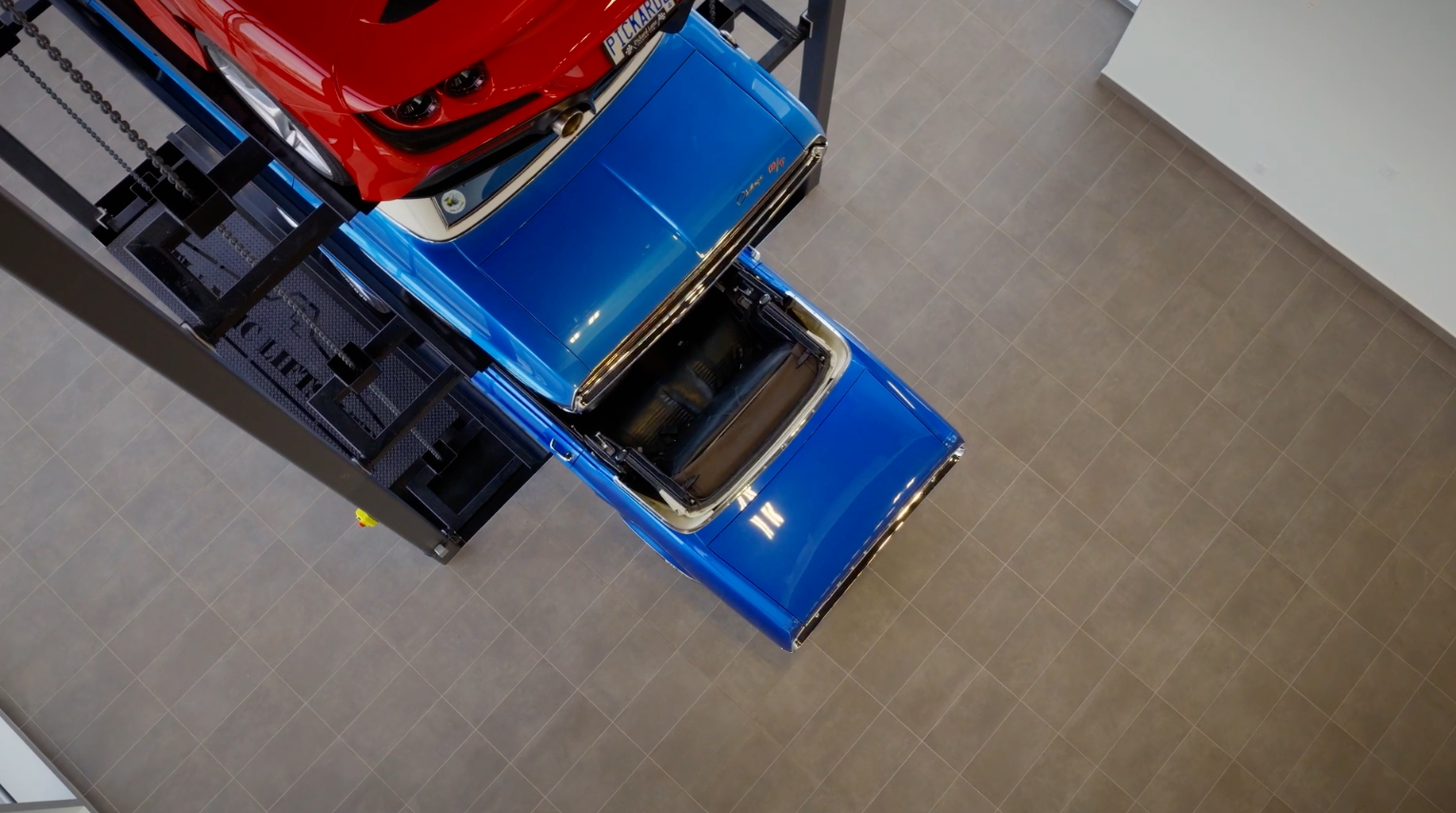

As the primary tray is raised, subsequent trays are engaged by the designated pinned locations in the high yield chain. This creates a uniform, consistent display with controlled spacing between vehicles.
The design prioritizes stability, predictability, and visual order, which is exactly what a dealership environment demands.
Capacity and Configuration
Atlantic Lifts offers a standard vehicle display lift model rated up to 20,000 lbs housing 4 vehicles. Custom options available.
Tray dimensions are configurable to suit the vehicles being displayed, including:
Longer wheelbases
Wider track widths
Larger tire packages
Specialty or performance vehicles
Simple, Controlled Operation
Operation is intentionally straightforward and deliberate.

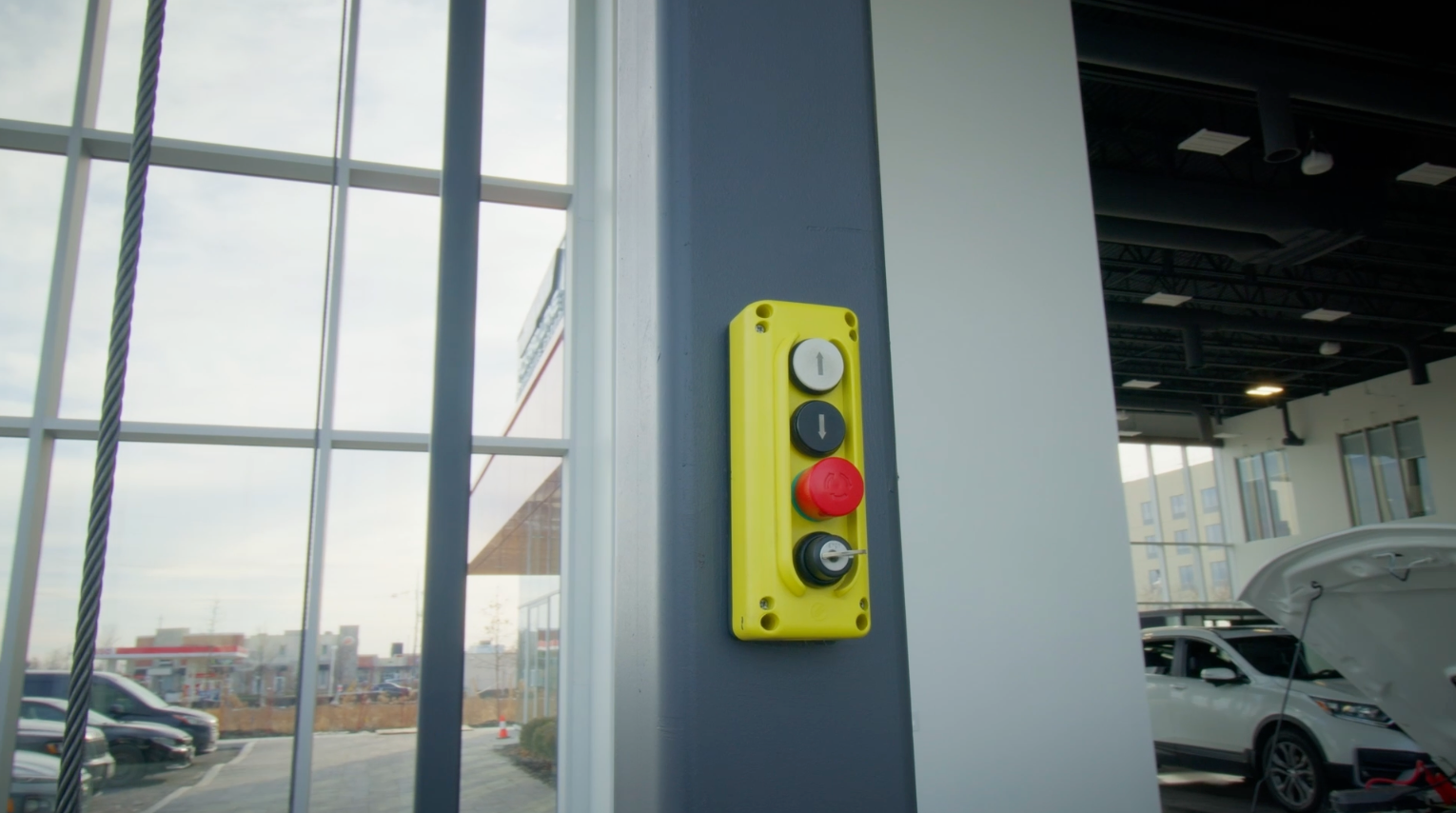

Push-and-hold control to run
Release to stop
Emergency stop provided
Keyed lockout for controlled access
This ensures the system is simple to use, easy to manage, and secure in a public-facing environment.
Built with Confidence
All fabrication is completed to CSA W47.1 Canadian welding standards. These lifts are built with the same discipline and attention to detail that defines every Atlantic Lifts product.
They are designed to perform reliably in dealership environments where presentation, consistency, and confidence matter.
Ideal Applications
Automotive dealerships
Flagship brand showrooms
Performance and luxury vehicle retailers
High-visibility display areas within commercial spaces
These systems are specifically intended for dealership use and are not marketed or positioned as general-purpose lifting equipment.
Why Atlantic Lifts
Atlantic Lifts designs and manufactures specialty lifting systems for demanding environments across Canada.
With decades of experience, in-house engineering, and a reputation built on reliability, we approach vehicle display lifts the same way we approach every product.
Ready to Create a Standout Showroom
If you are planning a new dealership or upgrading an existing space and want a feature that immediately sets you apart, Atlantic Lifts’ Vehicle Display Lifts offer a proven, purpose-built solution.
Contact us to discuss your dealership layout, vehicle mix, and display goals.
